Level Measurement
- Level Transmitters
- Non-contact Microwave More Info
- Guided Microwave More Info
- Capacitive More Info
- Hydrostatic level / pressure More Info
- Magnetostrictive More Info
- Bypass liquid level indicator More Info
- Ultrasonic More Info
- 3D Radar Level Transmitter More Info
- 3D Acoustic Level Scanner More Info
- 140 GHz Radar Level Transmitter More Info
Overview
As instrumentation engineering is the process of monitoring, gauging, analyzing and controlling process variables using various types of interconnected process control instruments, it has shaped itself to be an elementary component in the industry.
Primetech’s extensive collection of instrumentation products ensure improved production, quality management, workplace safety and cost effective solution in the process & manufacturing industries. Keeping the standards of products at par with the industry requirements, we at Primetech offer you complete field instruments solution

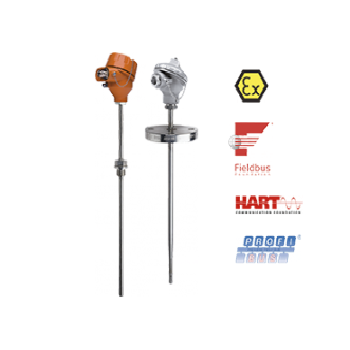

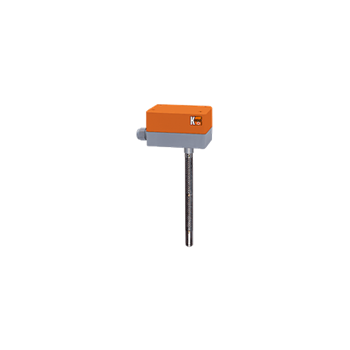

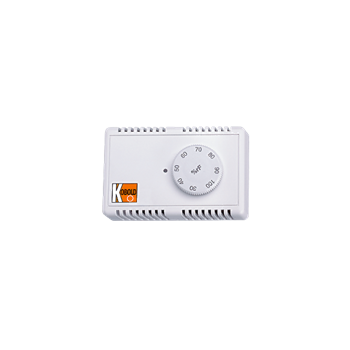

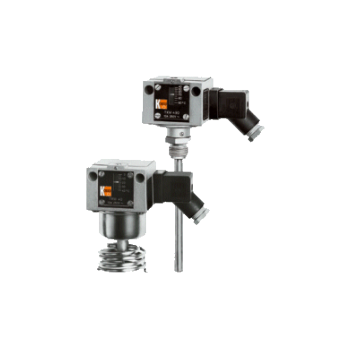

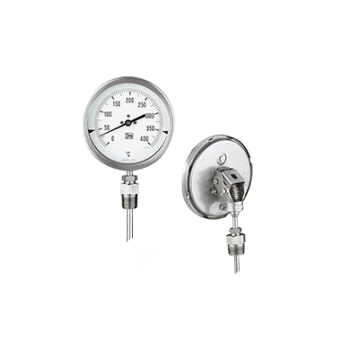

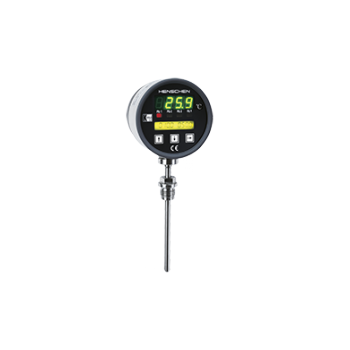

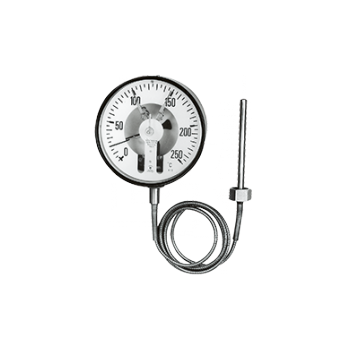

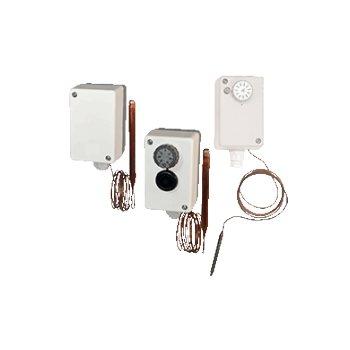

Temperature Measurement
In many production and process industry, the material temperature as well as the control of material temperature plays an important role. Depending on the type of material and medium used, different thermometers or temperature sensors can be used. Primetech offers the industry, a wide range of temperature measuring devices, temperature switches and temperature sensors, which can be permanently installed or can be used as hand tools.

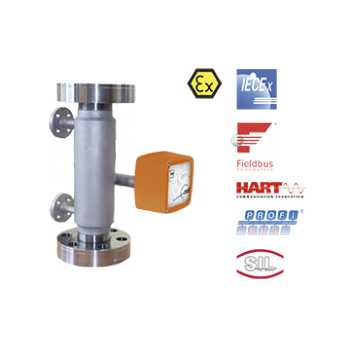

Flow Measurement
-

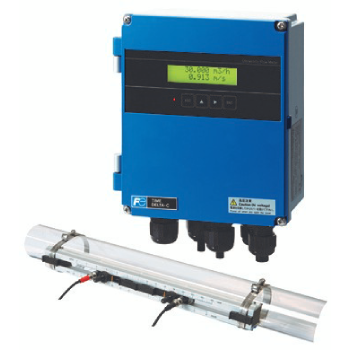

- Ultrasonic Flowmeters: More Info

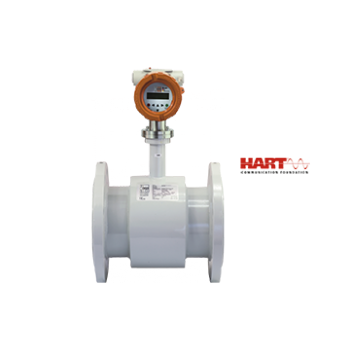

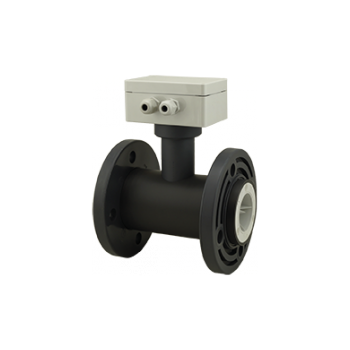

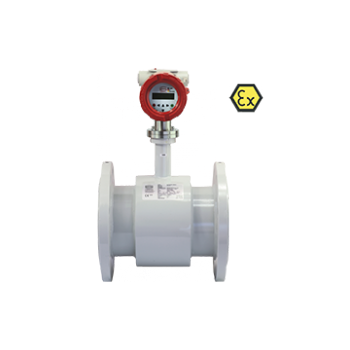

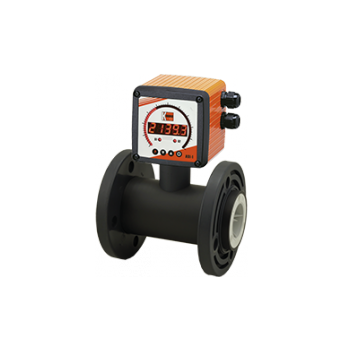

- Electromagnetic Flowmeters:More Info

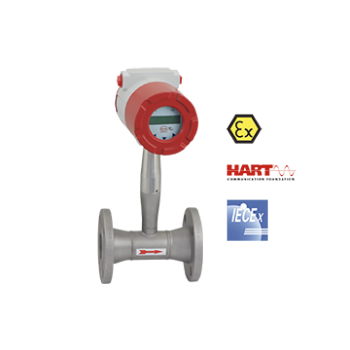

- Vortex Flowmeters More Info

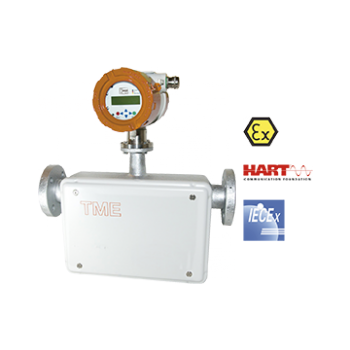

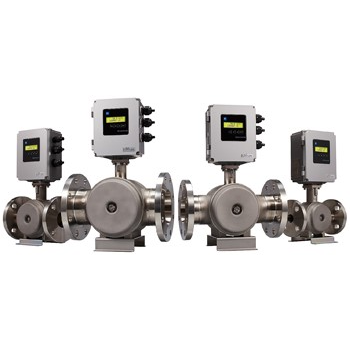

- Coriolis Mass Flowmeters More Info

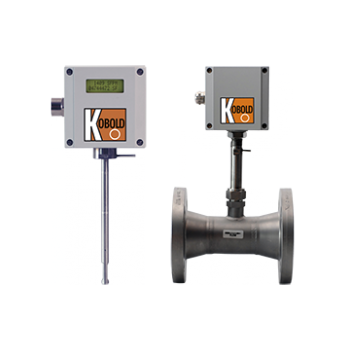

- Thermal Mass Flowmeters More Info

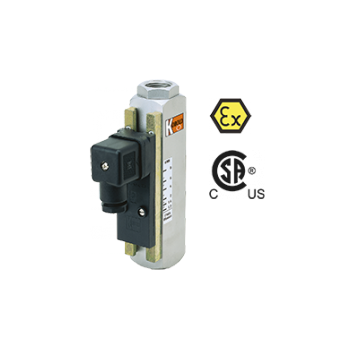

- Variable Area Flowmeters More Info

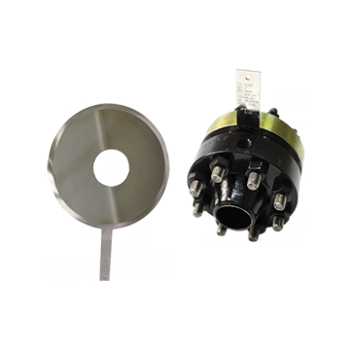

- Differential Pressure Type Flowmeters More Info

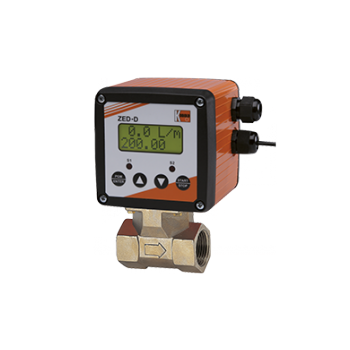

- Turbine Wheel Flowmeters More Info

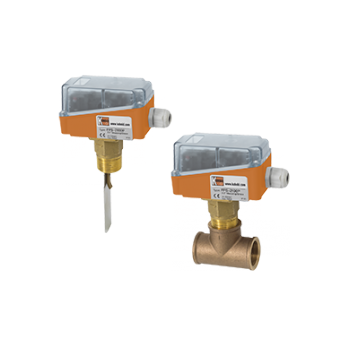

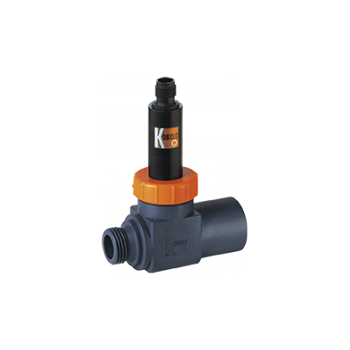

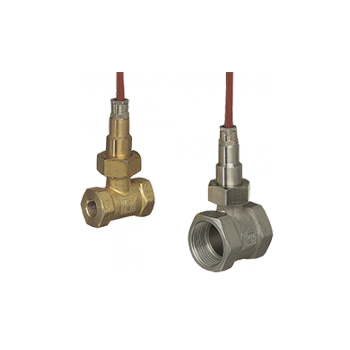

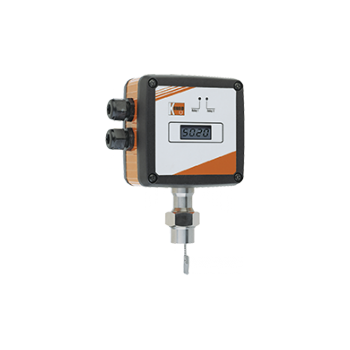

- Flow switches More Info

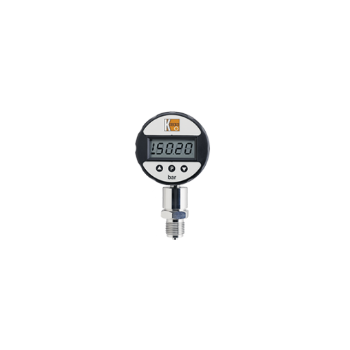

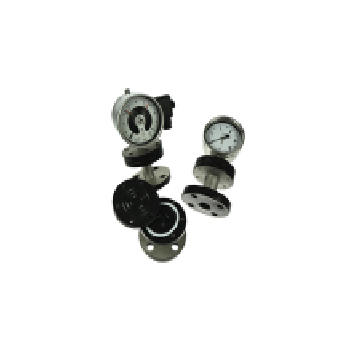

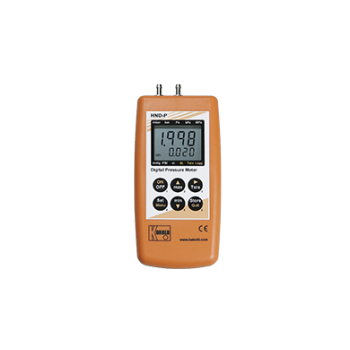

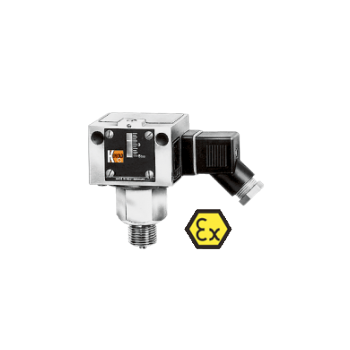

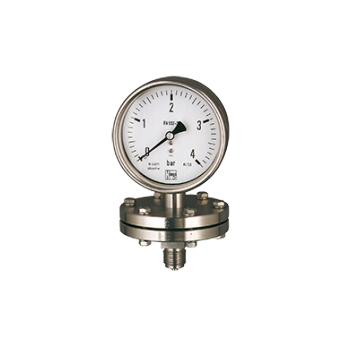

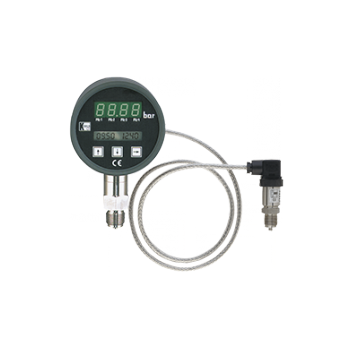

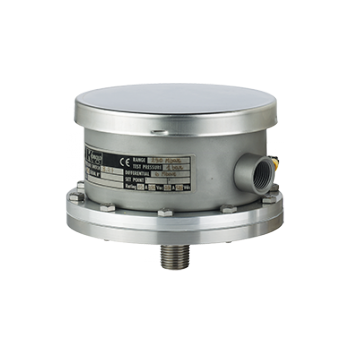

Pressure Measurement
We are offering electronic transmitters, incorporating the micro-capacitance silicon sensor. The transmitters have a feature like compact design, high accuracy and performance, long-term stability. They also offer wide measuring ranges and provide a variety of diaphragm materials.

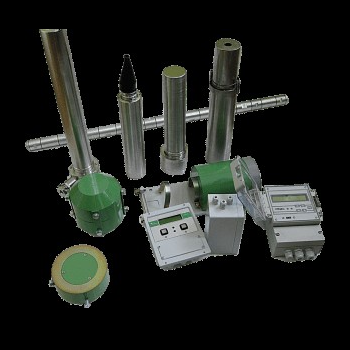

Nucleonic Density Meter
Nuclear Density and Level Meters (with Na-22 as the source) are exempted by radiation body for any approvals as the Radioactivity of the device is less than 1 MBq (less than 0.027 mCurie) and we have a high resolution patented detector to work at such a low radioactivity, an algorithm not achieved yet. This instrument provides a direct value to customer/end-user as this does not require regular audit report to be provided to radiation body by end user and also no training is required for installation and troubleshooting of the instrument.
Specification:
- • Preferred Applications: Liquids and Slurries
- • Measuring Range: 0.4 to 3.3 g/cc
- • Process Temperatures: Independent
- • Process Pressure: Independent
- • Signal Output: 4-wire with 4 – 20 mA/RS 485
- • Gamma Source : Na-22
- • Supply Voltage: 20 to 32 VDC/ 110 VAC/ 230 VAC
- • Power Consumption: Max 8 W @ 24 VDC
- • Hazardous Locations: Explosion Proof available on request
Application:
- • Ash Slurry
- • Gypsum Slurry
- • Limestone Slurry
- • Iron Ore Slurry
- • Bauxite Slurry
- • Lead-Zinc Slurry
- • Coal Slurry
- • Any kind of slurry with density between 0.4 g/cc to 3.3 g/cc
Images

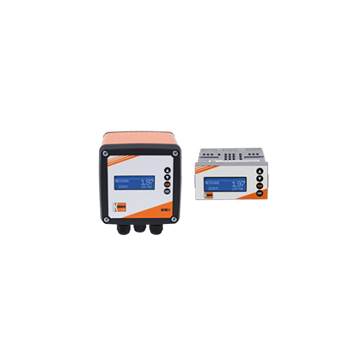

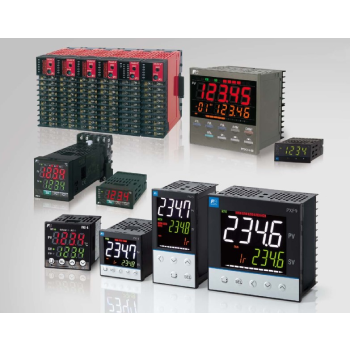

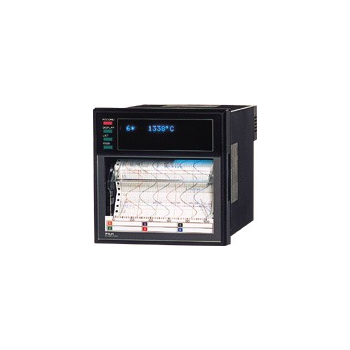

Controllers/Recorders

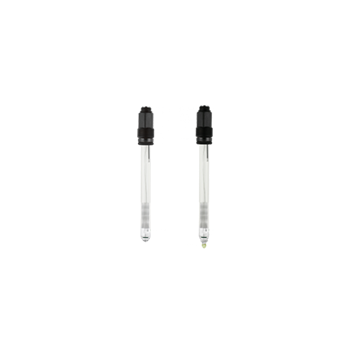

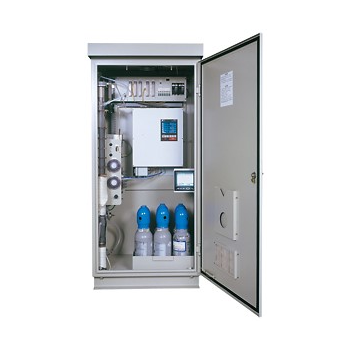

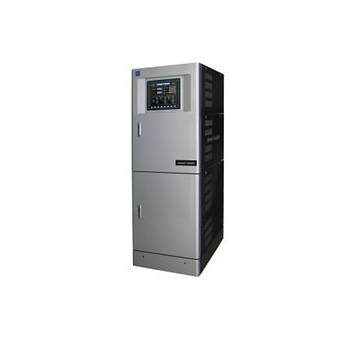

Analytic Instruments

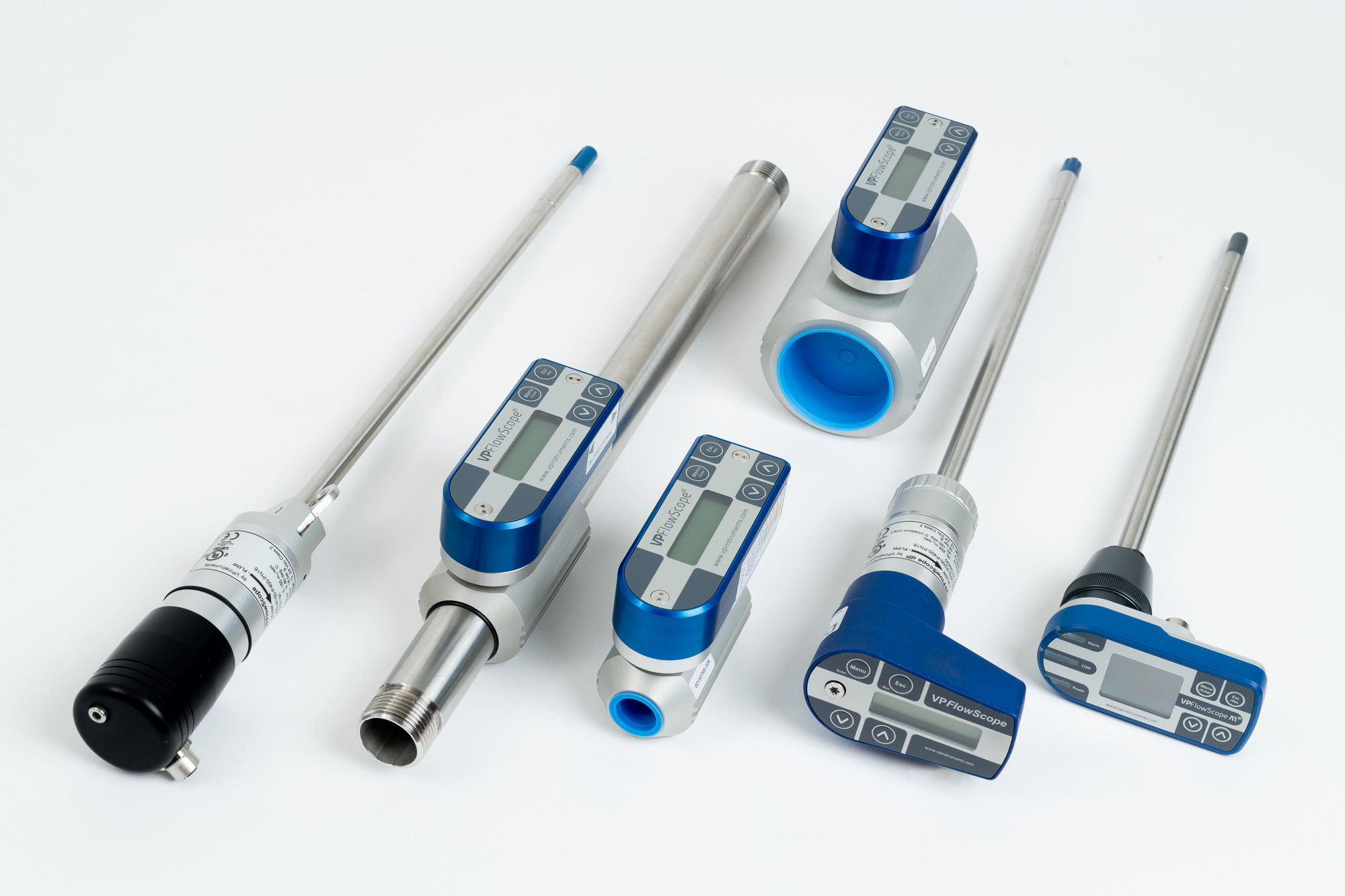

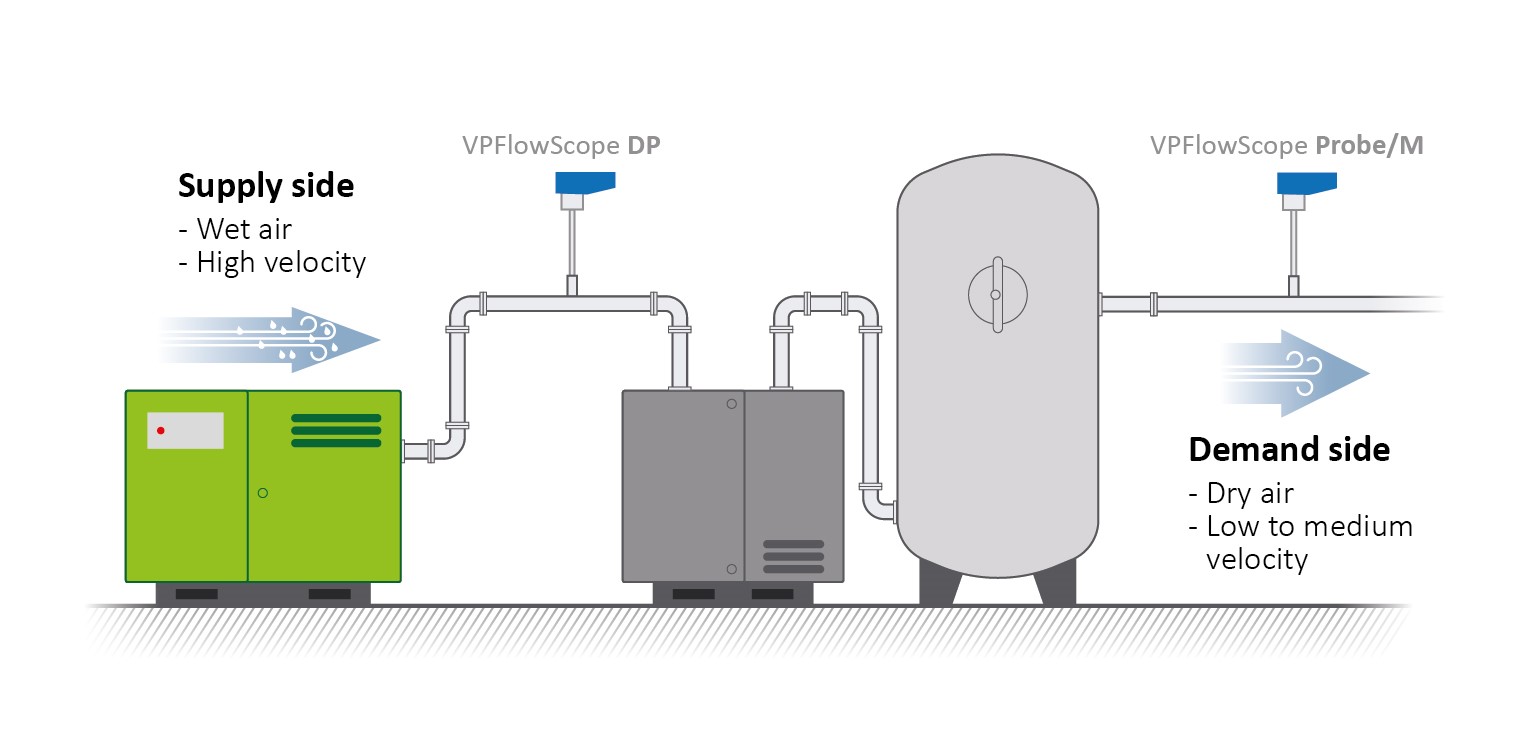

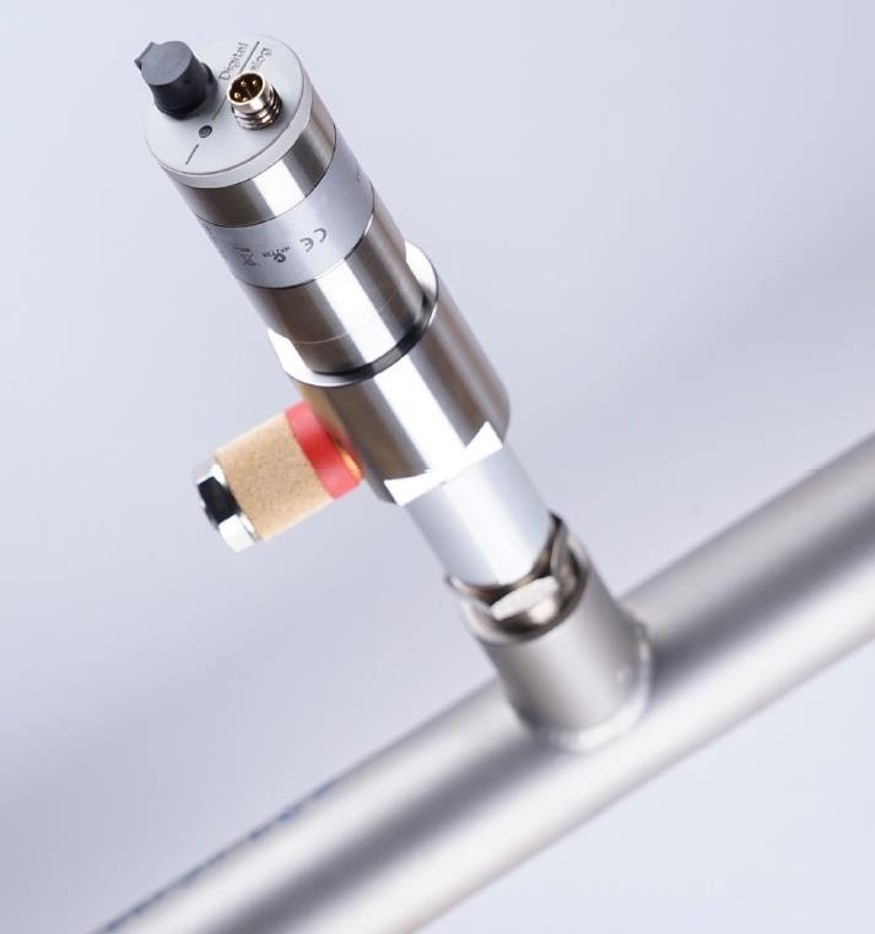

Energy Monitoring - Compressed Air and Industrial gases
Non-contact Microwave
Specification
- • Type: Compact and Integrated
- • 2-wire K-band Pulse Burst Radar
- • 25 GHz frequency
- • Max. 23 m (75 feet) measuring range for liquids and slurries
- • ±3 mm (0.12 inch) accuracy
- • Easy installation due to small antennas
- • Parabolic, horn, planar and enclosed antenna types
- • IP68 rated integrated type
- • Sanitary types for meeting high hygienic requirements
- • High temperature version
- • Plug-in graphical display module
- • Ex version
- • FM & CSA approved
- • Power supply: 20 – 36 V DC
- • Ambient temperature: -20 °C … +60 °C
- • Process temperature: -30 °C … +100/180 °C
- • Pressure: -1 bar to 25 bar
- • Output: 4 – 20mA, HART
- • Process connection: 1 ½", 2" or flanges or sanitary
- • Protection: IP67 / IP 68
- • Approvals: ATEX, IEC Ex, FCC, INMETRO
Application
- • Water, wastewater
- • Power generation
- • Food and beverage
- • Pharmaceutical
- • Chemical
Images

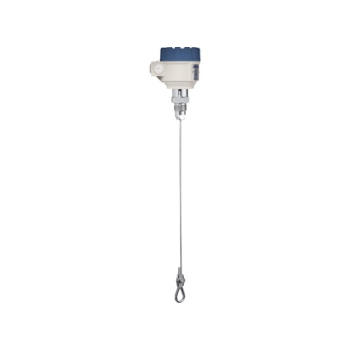

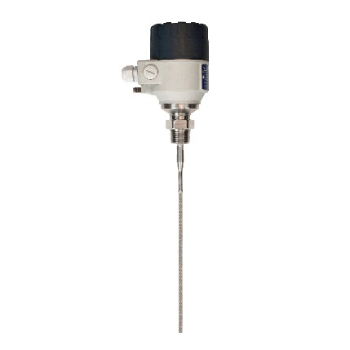

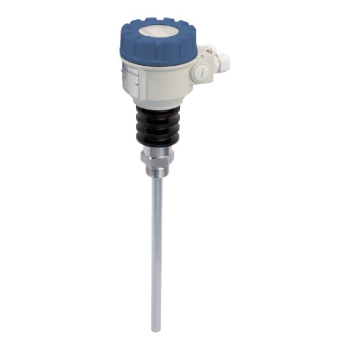

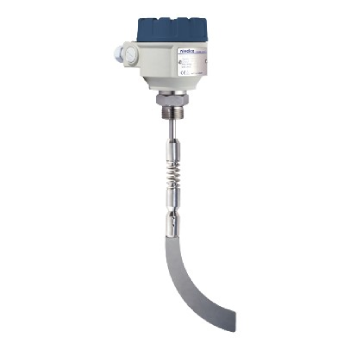

Guided Microwave
Specification
- • Measuring range up to 24 m (80 feet)
- • Accuracy: ±5 mm (0.2 inch)
- • Measurement is independent of dielectric constant, temperature, pressure and density variations
- • Rod, segmented rod, cable and coaxial probe version
- • Minimum r ≥ 1.4
- • 2-wire version
- • Graphic display
- • Power Supply : 18-35 VDC
- • 4 – 20 mA + HART® output
- • Medium temperature range: -30 °C … +200 °C (-22 °F … +392 °F)
- • Maximum process pressure: 40 bar (580 psig)
- • IP67 protection
- • Probe type: Mono Cable / Mono Rod, Mono Segmented Rod, Twin Rod, Coaxial PipeTwin
Application
- • Level, distance or volume measurement of liquids, powders, granules with er > 1.4
- • Agriculture
- • Construction materials
- • Chemical industry
- • Food and beverage
- • Power plants
- • Oil industry
Images

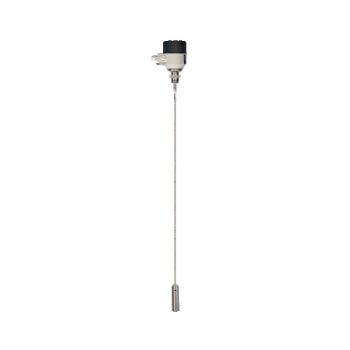

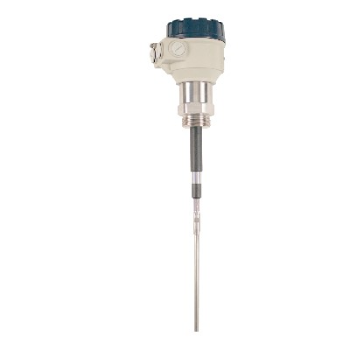

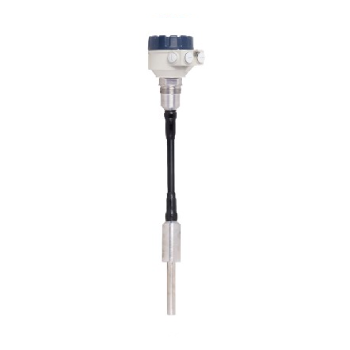

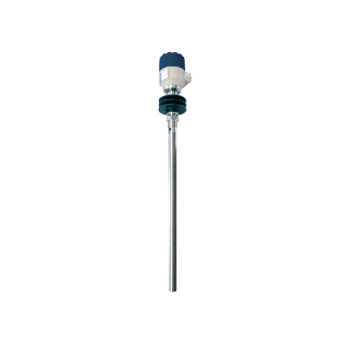

Capacitive
Specification
- • Max. 20 m (65.5 ft) measurement range
- • Vertical mounting
- • Rod or cable probe versions
- • -30…+200°C (-22...+392 °F) medium temperature
- • Max. 40 bar g (580 psi g) medium pressure
- • 32-point linearization table
- • Indirect assignment of 0% and 100%
- • Power supply: 12-36 VDC
- • 4-20 mA + HART output
- • Ex version
- • IP67 protection
- • Probe Type: Rod, high temp rod type and cable type
Application
- • Distance, level and volume measurement of liquids, powders, granules, with er > 1.5 relative dielectric constant
- • Chemical industry
- • Food and beverage
- • Power plants
- • Oil industry
- • Water / wastewater industry
Images

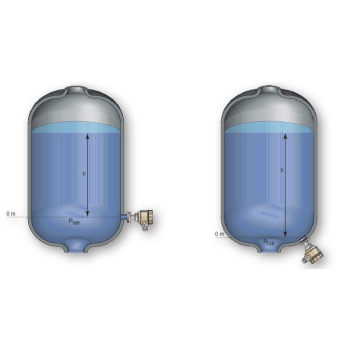

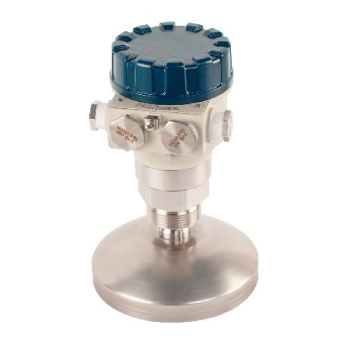

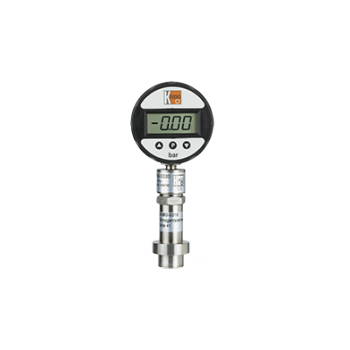

Hydrostatic Level / Pressure
Liquid Level Transmitter
Specification
- • 0.25% accuracy
- • Gauge or absolute pressure transmitter
- • Piezoresistive sensor with stainless steel flush diaphragm
- • Wide pressure range selection
- • Temperature compensation
- • Power supply: 10 … 36 V DC
- • Output: 4-20 mA + HART communication
- • Plug-in display
- • Wide variety of process connections
- • IP 65 protection
- • Ex version
- • Level measurement of most foaming liquids and masses in tanks and vessels
- • Chemical industry
- • Food and beverage
- • Power plants
- • Oil industry
- • Water / wastewater industry
Application

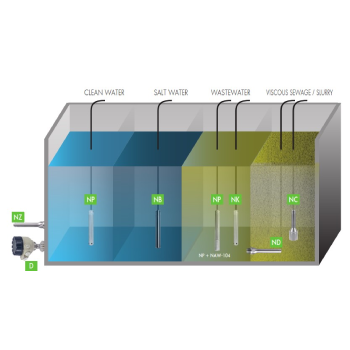

Clean Water and Sewage Water level transmitter
Specification
- • Measuring range up to 200 m (656 ft)
- • IP68 protection
- • Remote programmable
- • Submersible or screw-in types
- • Ø22 / 24 mm (Ø0.85 / 1 inch) tube
- • HART® communication
- • Power supply: 12 – 30 V DC
- • 2- or 3-wire versions
- • 2x 4 – 20 mA output (level + temperature)
- • Built-in Pt100 temperature sensor
- • Overvoltage and inverse polarity protection
- • Wide range of accessories
- • Ex version
- • Can be certified for potable water
- • Available with capacitance ceramic, piezorezistive stainless steel or ceramic sensor
- • Level metering of small diameter pipes, sewage water, saline solutions, sea water, potable water
- • Chemical industry
- • Water / wastewater industry
Application:
Images

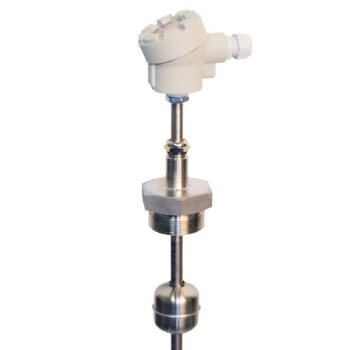

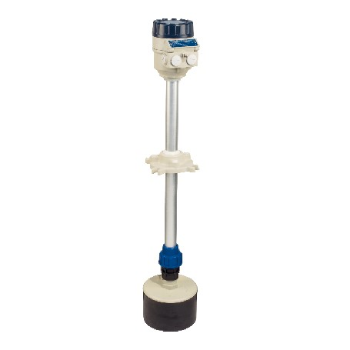

Magnetostrictive
Specification
- • 0.1 mm or 1 mm resolution
- • Insertion length maximum 15 m
- • Rigid or flexible guide tube
- • Plastic coated version for chemicals
- • Power supply: 12.5 V – 36 V DC
- • 4-20 mA and HART output
- • Graphical display
- • 99-point linearization table
- • Measurement optimalisation
- • Volume measurement
- • Ex version
- • OIML R85 certification
- • Type: Compact and Integrated
Application
- • Level measurement of normal and flammable liquids, with min. 0.4 kg/dm3 density
- • Chemical industry
- • Power plants
- • Oil industry
- • Water industry
Images

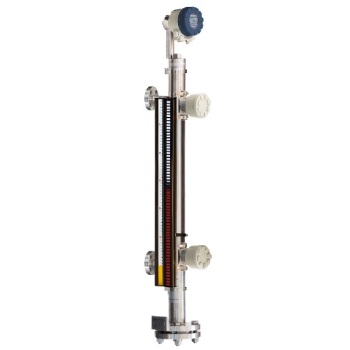

Bypass liquid level indicator
Specification
- • Clearly visible indicator
- • Measuring range: 500-5500 mm (1.65 – 18 ft)
- • ± 10 mm (0.4 inch) accuracy
- • Max. 100 bar g (1440 psi g)
- • Process Pressure
- • High temperature version
- • Optional level switches
- • Optional magnetostrictive
- • level transmitter
- • PED approval
Application
- • Level measurement of pressurized vessels, boilers and tanks
- • Chemical industry
- • Power plants
- • Oil industry
- • Water industry
Images

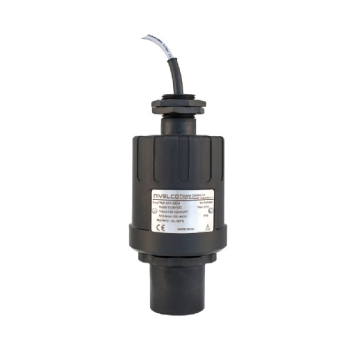

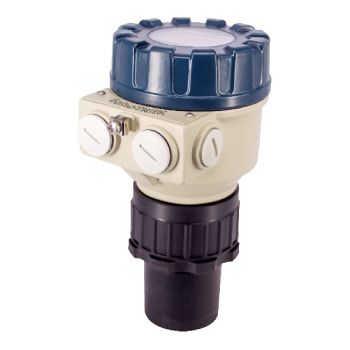

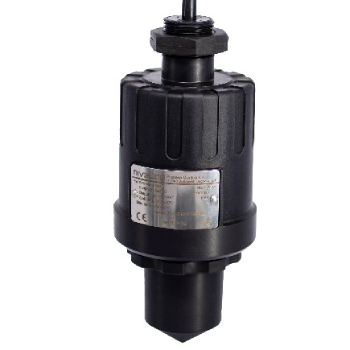

Ultrasonic
Liquid level transmitter
Specification
- • 2- /4-wire compact and
- • 2-wire integrated level transmitters
- • Non-contact level measurement
- • Maximum 25 m (82 ft) measuring range
- • Narrow (5°) beam angle
- • Full temperature compensation
- • IP68 rated integrated (blind) type
- • Plug-in display unit for the compact types
- • HART® communication
- • Ex version
- • Type: Compact / Integrated
- • Level measurement of liquids, wastewater, aggressive chemicals and slurries
- • Agriculture
- • Construction materials
- • Chemical industry
- • Food and beverage
- • Paper Mill
- • Oil industry
- • Water / wastewater industry
Application
Solid level transmitter
Specification
- • Non-contact level measurement
- • 4-wire compact and integrated (blind) level transmitters
- • Maximum 60 m (200 ft) measuring range
- • Narrow (5°) beam angle
- • Full temperature compensation
- • Plug-in display unit for the compact types
- • HART communication
- • Dust Ex version
- • Type: Compact / Integrated
- • Level measurement of free flowing solids
- • Chemical industry
- • Food and beverage
- • Mining industry
- • Level metering of small diameter pipes, sewage water, saline solutions, sea water, potable water
- • Chemical industry
- • Water / wastewater industry
Application:
Images

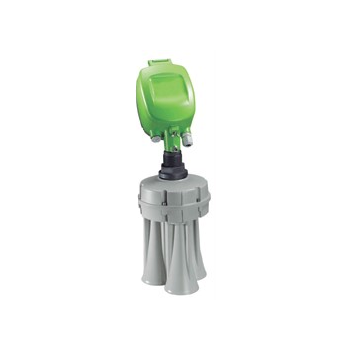

3D Radar Level Transmitter
3D Radar Level Transmitter is the only 5 Beam Radar Level Transmitter which covers the Silo/ Bunker at multiple points to provide an Average Level, Maximum Level, Minimum Level, Volume, Mass and real time 3D Profile of the material stored inside the Silo/ Bunker. Having an operating frequency of 140 GHz it works under the most extreme and harsh conditions. Working on an Adaptive FFT, the 3D Radar offers an un-paralleled user experience just like a camera installed inside a silo working in duty atmosphere and providing inventory.
Application
- • Coal Bunker
- • Fly Ash Silo
- • Cement Silo
- • Clinker Silo
- • Iron Ore Bins
- • Pellet Silos
- • Sinter Silos
- • RMHS Silos
- • Coke Silo
- • PP/ PTA/ LDPE Silos
- • Pain Silo
- • Urea Silos
- • Phosphate Silos
- • Dust Bins
- • Grain (All kinds of Grains) Silos
- • Ground Bunkers
- • Bulk Chemical Storage Silos
- • Other Silos storing Bulk Solids and Powders
- • Flue Gas Duct
Specification
- • Preferred Applications: Powders and solids
- • Measuring Range: 50 meters
- • Process Temperatures: -40°to +185°C
- • Process Pressure: -0.2 – 40 bar
- • Signal Output: 4-wire 4 – 20 mA/HART/RS-485/Modbus
- • Number of Beams: 5
- • Emitting Frequency: 140 GHz (each beam)
- • Supply Voltage: 20 to 32 VDC (110/ 230 VAC through SMPS)
- • Power Consumption: Max 8 W @ 24 VDC
Images

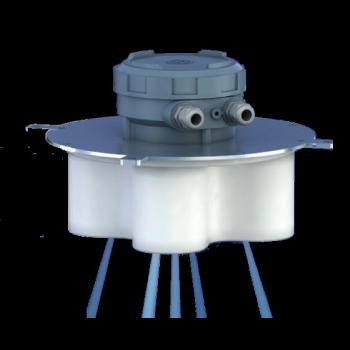

3D Acoustic Level Scanner
3D Level Scanner is an Acoustic continuous Level Transmitter that measures multiple points on a material’s surface, providing continuous, non-contact inventory volume measurement that accounts of irregular material topography. This advanced acoustic-based technology is proven to perform in powders and bulk solids contained in bins, silos, domes, warehouses, as well as open bunkers and piles. Unique 3D mapping capabilities provide a visual representation of bin contents, detecting cone up or down as well as sidewall buildup.
Application
- • Coal Bunker
- • Fly Ash Silo
- • Cement Silo
- • Clinker Silo
- • Iron Ore Bins
- • Pellet Silos
- • Sinter Silos
- • RMHS Silos
- • Coke Silo
- • PP/ PTA/ LDPE Silos
- • Pain Silo
- • Urea Silos
- • Phosphate Silos
- • Dust Bins
- • Grain (All kinds of Grains) Silos
- • Ground Bunkers
- • Bulk Chemical Storage Silos
- • Other Silos storing Bulk Solids and Powders
Specification
- • Preferred Applications: Powders and solids
- • Measuring Range: 70 meters
- • Process Temperatures: -40°to +185°C
- • Process Pressure: -0.2 – 3 bar
- • Signal Output: 4-wire 4 – 20 mA/HART/RS-485/Modbus
- • Emitting Frequency: 2 KHz to 10 KHz
- • Supply Voltage: 20 to 32 VDC
- • Power Consumption: Max 1.5 W @ 24 VDC
- • Hazardous Locations: ATEX Certified for Intrinsic Safety
Images
140 GHz Radar Level Transmitter
140 GHz Radar Level Transmitter is the WORLD’s HIGHEST OPERATING FREQUENCY for a RADAR LEVEL TRANSMITTER. The unique 140 GHz of operating frequency provides a BEAM ANGLE of ONLY 2 DEGREES allowing for installations in tight locations. This Level Transmitter works for typical applications where there is fast filling and empty rate, high temperature MOLTEN METAL LEVEL MEASUREMENT up to 1600 Degree C (Blast Furnace), high pressure and difficult to measurement medium characteristics like low di-electric, for Silo and Bunkers with Critical Solids/ Powders ad Liquid Applications with Agitators, fumes and vapours.
Application
- • Coal Bunker
- • Fly Ash Silo
- • Cement Silo
- • Clinker Silo
- • Iron Ore Bins
- • Pellet Silos
- • Sinter Silos
- • RMHS Silos
- • Coke Silo
- • Acids
- • Alkalies
- • Fuel Oils
- • Water
- • Slurry
- • PP/ PTA/ LDPE Silos
- • Pain Silo
- • Urea Silos
- • Phosphate Silos
- • Dust Bins
- • Grain (All kinds of Grains) Silos
- • Ground Bunkers
- • Bulk Chemical Storage Silos
- • Other Silos storing Bulk Solids and Powders
- • Steam Applications
- • MOLTEN METAL
- • Liqor
- • Milk
- • LIQUIDS with Agitators, Fumes and Vapours
- • Other Liquid and Slurry Applications
Specification
- • Preferred Applications: Powders and solids
- • Measuring Range: 50-80 meters
- • Process Temperatures: -60°to +1600°C
- • Process Pressure: -0.2 – 40 bar
- • Signal Output: 2 Wire/ 4-wire with 4 – 20 mA/HART/ RS 485/ Bluetooth (varies for different models)
- • Emitting Frequency: 120-140 GHz GHz
- • Supply Voltage: 20 to 32 VDC/ 100- 260VAC (through SMPS)
- • Power Consumption: Max 1.5 W @ 24 VDC
- • Hazardous Locations: Explosion Proof Certification
Images

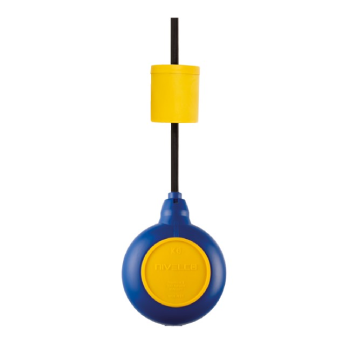

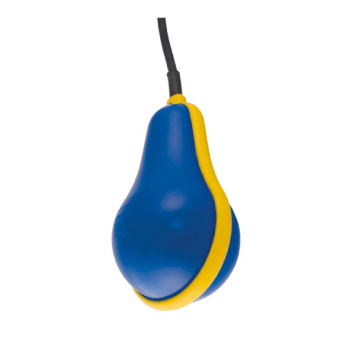

Float
Specification
- • Operation without power supply
- • Low cost polypropylene level switch
- • Hermetically moulded, double chamber
- • Mercury free micro switch
- • Adjustable switch differential
- • For low density liquids
- • Process temperature: 0 °C … + 50 °C
- • Pressure: max. 1 bar
- • Output: Switch rating: 250 V AC, 10(3) A
- • Protection: IP68
Application
- • Level switch from potable water to sewage
- • Suitable also for tanks and basins
- • Fail-safe indication and pump control
- • Water / wastewater industry
Images

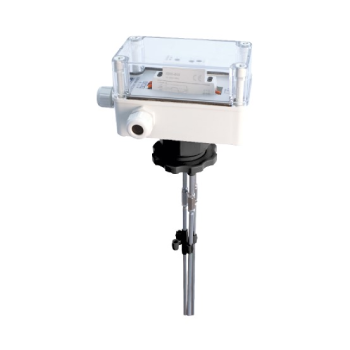

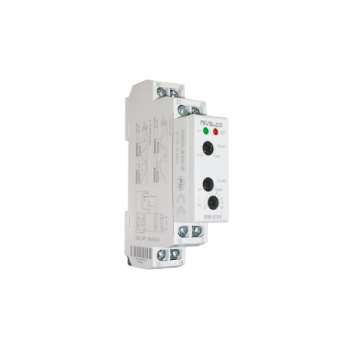

Conductive
Specification
- • Limit switch or differential switch versions
- • Adjustable sensitivity
- • Adjustable time delay
- • High or low fail-safe mode
- • All wetted parts stainless steel
- • Compact unit with two independent relays
- • Separate probe and relay unit
- • Rod probes up to 3 m
- • Power supply: 24 – 240 V AC/DC
- • Ambient temperature: - 20 °C … + 50 °C
- • Process temperature: max. + 200 °C
- • Pressure: max. 16 bar
- • Output: 250 V AC, 16 A or 8 A
- • Process connection: ⅜", 1½"
- • Protection: IP65/IP67, IP20
Application
- • Conductive liquids with minimum 1 x 10-5 S/cm conductivity
- • Fail-safe indication and pump control
- • Chemical industry
- • Water / wastewater industry
Images

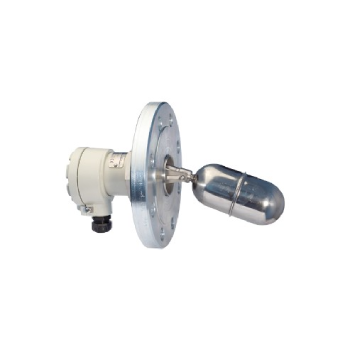

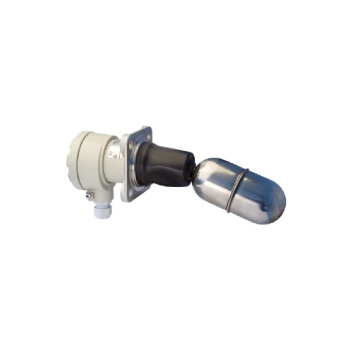

Magnetic Coupling
Specification
- • Operation without power supply
- • Micro-switch separated from the process
- • All wetted parts stainless steel
- • Side or top mounting
- • Fixed or adjustable switch differential
- • Submersible versions
- • Various process connections
- • Operational check via optional tester
- • Flame-proof models
- • SIL1 approval
- • Ambient temperature: - 20 °C … + 80 °C
- • Process temperature: - 40 °C … + 250 °C
- • Pressure: max. 25 bar
- • Output: 250 V AC, 10 A NO/NC
- • Process connection: flanges or 2" thread
- • Protection: IP65, IP68
- • Approvals: ATEX, IEC Ex, INMETRO, EAC, DNV GL (Marine), BV (Marine), SIL1
Application
- • Liquids with minimum 0.7 kg/dm3 density
- • Fail-safe and control level switches in closed tanks
- • Ballast tanks on ships
- • Chemical industry
- • Food and beverage
- • Power plants
- • Oil industry
- • Water industry
Images

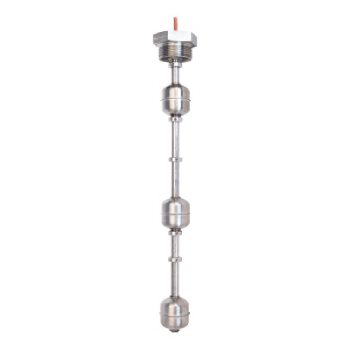

Magnetic Tracking
Specification
- • Operation without power supply
- • Reed switches separated from process
- • Wetted parts stainless steel or plastic
- • Up to 5 switch points
- • Vertical adjustability of all switch points
- • Various process connections
- • Flame-proof models
- • Ambient temperature: - 40 °C … + 95 °C
- • Process temperature: - 40 °C … + 150 °C
- • Pressure: max. 25 bar
- • Output: 250 V AC, 3 A
- • Process connection: 1", 2" or flanges
- • Protection: IP67, IP68
- • Approvals: ATEX, BV (Marine)
Application
- • Liquids with minimum 0.4 kg/dm3 density
- • Multi-point level switch in closed tanks
- • Foaming liquids, chemicals with dense vapour or gas layer above the surface
- • Chemical, oil industry
- • Food and beverage
- • Power plants
- • Oil industry
- • Water industry
Images

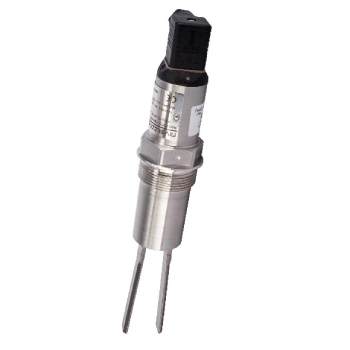

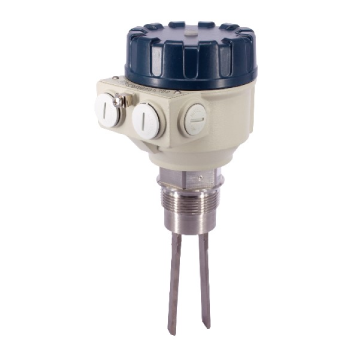

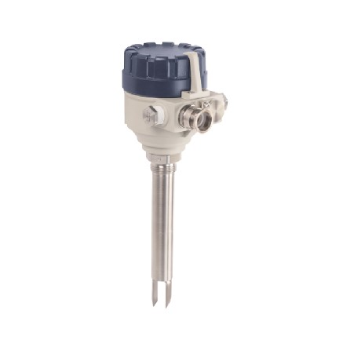

Vibrating Fork
Liquid level switch
Specification
- • No moving parts
- • Self-cleaning for most mediums
- • Stainless steel and plastic coated probes
- • Solid rod extension up to 3 m
- • Various output configurations
- • High or low fail-safe mode
- • Plastic, aluminum or stainless steel housing
- • Explosion-proof models
- • For corrosive, thick, turbulent, flowing liquids
- • Power supply: 20 – 255 V AC, 20 – 60 V DC
- • Ambient temperature: - 40 °C … + 70 °C
- • Process temperature: - 40 °C … + 130 °C
- • Pressure: max. 40 bar
- • Output: 1 or 2 SPDT relays, 2 - wire AC or DC, transistor (PNP, NPN)
- • Process connection: 1", 1½", 2" or flanges or hygienic fittings
- • Protection: IP67, IP68, IP65
- • Approvals: ATEX, IEC Ex, FM, DNV GL (Marine)
Application
- • Most liquids with minimum 0.7 kg/dm³ density and maximum 10⁴ mm²/s viscosity
- • Chemical industry
- • Food and beverage
- • Power plants
- • Oil industry
- • Water industry
Solid level switch
Specification
- • No moving parts
- • Self-cleaning for most mediums
- • Stainless steel probes
- • Solid rod extension up to 3 m
- • Various output configurations
- • Selectable density
- • High or low fail-safe mode
- • Plastic, aluminum or stainless steel housing
- • Dust-Ex models
- • Power supply: 20 – 255 V AC, 20 – 60 V DC
- • Ambient temperature: - 40 °C … + 70 °C
- • Process temperature: - 40 °C … + 130 °C
- • Pressure: max. 40 bar
- • Output: 1 or 2 SPDT relays, 2 - wire AC or DC, transistor (PNP, NPN)
- • Process connection: 1", 1½", 2" or flanges
- • Protection: IP67, IP68, IP65
- • Approvals: ATEX
Application
- • Granular material particulate and powder with minimum 0.01 kg/dm³ bulk density
- • Chemical industry
- • Food and beverage
- • Power plants
- • Oil industry
- • Plastic industry
Images

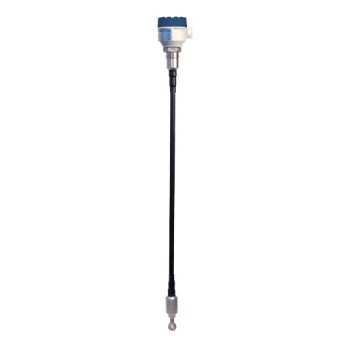

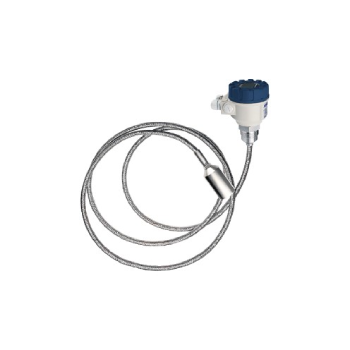

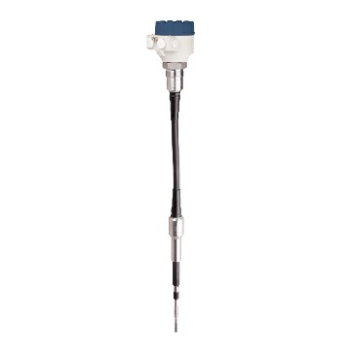

Vibrating Rod
Specification
- • No moving parts
- • Self-cleaning for most mediums
- • Stainless steel vibrating section
- • Rod (0.3 – 3 m) or flexible cable extension (1 – 20 m)
- • Plastic or aluminum housing
- • Selectable density
- • High or low fail-safe mode
- • Selectable switching delay
- • Dust-Ex models
- • For grain, flour, plastic granules, cement, fly ash, etc.
- • Power supply: 20 – 255 V AC/DC
- • Ambient temperature: - 30 °C … + 60 °C
- • Process temperature: - 30 °C … + 160 °C
- • Pressure: max. 25 bar
- • Output: Relay (SPDT) or electronic switch (SPST)
- • Process connection: 1½"
- • Protection: IP67
- • Approvals: ATEX, IEC Ex
Application
- • Granular material and powder with min. 0.05 kg/dm³ bulk density
- • Agriculture
- • Construction materials
- • Chemical industry
- • Food and beverage
- • Mining industry
- • Power plants
- • Paper mill
- • Recycling
- • Plastic industry
Images

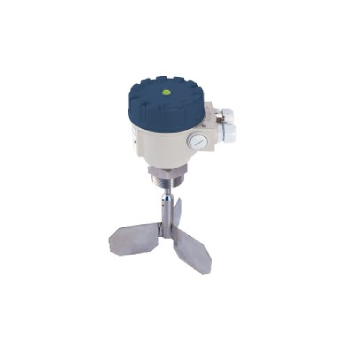

Rotary Paddle
Specification
- • Plastic or aluminum housing
- • Long service time
- • Motor shut-off feature
- • Flexible coupling
- • Rod or flexible cable extension (0.3 – 3 m)
- • Sealed bearings
- • High temperature version
- • True fail-safe version
- • Dust-Ex models
- • High or low fail-safe
- • Feed, coal, sand, rocks, limestone, metals, rubber
- • Power supply: 24 V AC/DC, 120 V AC, 230 V AC
- • Ambient temperature: - 30 °C … + 60 °C
- • Process temperature: - 20 °C … + 200 °C
- • Pressure: max. 3 bar
- • Output: Relay 250 V AC, 10 A
- • Process connection: 1", 1½", mounting plate
- • Protection: IP67
- • Approvals: ATEX, IEC Ex
Application
- • Granular material and powder with minimum 0.1 kg/dm³ density
- • Agriculture
- • Construction materials
- • Chemical industry
- • Food and beverage
- • Mining industry
- • Paper mill
- • Recycling
- • Plastic industry
Images
RF Capacitance:
Specification
- • Intelligent electronic level switch
- • Build-up immunity
- • Easy calibration
- • Selectable sensitivity
- • Fail-safe operation mode
- • Rod (0.7 – 3 m) or flexible cable extension (1 – 10 m)
- • High temperature version
- • Dust-Ex models
- • For high viscosity, sticky materials
- • For special applications such as blockage detection in hopper and hot ash
- • Power supply: 20 – 250 V AC/DC
- • Ambient temperature: - 30 °C … + 65 °C
- • Process temperature: - 30 °C … + 235 °C
- • Pressure: max. 25 bar
- • Output: Relay (SPDT) or electronic switch (SPST)
- • Process connection: ¾", 1", 1 ½"
- • Protection: IP67
- • Approvals: ATEX, IEC Ex
Application
- • For solids with εr≥1.5 and liquids
- • Agriculture
- • Construction materials
- • Chemical industry
- • Pharmaceutical industry
- • Food and beverage
- • Mining industry
- • Power plants
- • Paper mill
- • Plastic industry
Images
Multipoint Temperature Transmitter
Specification
- • 2-wire multipoint temperature transmitter
- • Digitally addressed sensors
- • Replaceable sensors
- • System capability
- • Max. 15 sensors
- • Intrinsically safe and Dust-Ex models
- • Power supply: 12 – 36 V DC
- • Ambient temperature: - 30 °C … + 65 °C
- • Measuring range: In liquids: - 30 °C … + 125 °C, In solids: - 30 °C … + 85 °C
- • Probe length: Rigid probe: 1 – 4 m, Flexible probe: 1 –50 m
- • Output: 4 – 20 mA + HART®
- • Accuracy: ± 0,5 °C
- • Process connection: M20 x 1,5; 1", 1½"
- • Protection: IP67
- • Approvals: ATEX
Application
- • Temperature measurement of powdered, granular solids or liquids
- • Agricultural storage silos
- • Silos of grain mills
- • Food industry
- • Animal feed industry
- • Temperature trend monitoring
Images
Resistance Thermometers (RTD)
Specification
- • Measuring range: -198 ... +600°C
- • Connection: thread, flange, weld-on sleeve
- • Bulb material: stainless steel
- • Sensor: Pt100, 2-, 3- or 4-wire, class A, B, 1/3 or 1/10 DIN
- • Option: head mounted transmitter 4 - 20 mA, HART®, Profibus® PA, Fieldbus®
Images
.png)
Thermocouples
Specification
- • Measuring range: -200 ... +1100 °C
- • Connection: thread, flange, weld-on sleeve
- • Material: stainless steel, alloys
- • Thermocouples: FeCu-Ni, NiCR-Ni
- • Accuracy class: 1 or 2
- • Option: head mounted transmitter 4 - 20 mA
Images
Head Mount Temperature Transmitter
Specification
- • Measuring range: programmable HART®
- • Input: Pt100 / 500 / 1000, Ni100 / 500 / 1000, thermocouples, resistance, mV
- • Output: 4 - 20 mA
- • Supply: 7.5 ... 45 VDC
Images
Temperature switches and Gauges
We are offering Bi-Metal thermometer, Capillary Thermometer, Capillary Thermostat, Temperature switch, Thermal reed switch, Digital Thermometer.
Images
Ultrasonic Flowmeters
Clamp-on type sensor easily mountable on existing pipe. Suited for a wide range of liquids, for example, deionized water, cooling water, chemical solution, drinking water, sea water, oil, tap water, hot water, industrial water, corrosive liquids. Ultrasonic flowmeter for air is also available.
Portable Ultrasonic Flowmeter
- • Ideal for multi-point measurement in the field
- • High accuracy ±1.0% of rate and fast response ≤ 1 s
- • Battery powered, 12 hours
- • SD card
- • Flow profile (option)
- • Printer (option)
- • Pipe Diameter: 13–6000 mm (depends on detector)
TIME DELTA-C Flowmeter
- • Fast response: 0.2 seconds
- • Compact transmitter: 142 x 170 mm
- • Excellent anti-bubble performance
- • Operation available without opening the cover
- • RS-485 communication (option)
- • Wide application range
- • Parameter loader software provided
- • Pipe Diameter: 13–6000 mm
Spool Piece Ultrasonic Flowmeter
- • Three pairs of sensors for accuracy of ±0.2% of rate Ex-proof version available
- • Analog, Pulse, Alarm output
- • HART or RS-485
- • Pipe Diameter: 25, 50, 80, 100 mm
Images
Electromagnetic Flowmeters
The Electromagnetic flowmeter is used to measure and monitor the volume flow rate of fluids, pulps, pastes and other electrically conductive materials, without loss of pressure. When an electrically conductive medium passes through a directional magnetic field, a voltage is induced in accordance with Faraday’s Law of Induction. The size of this measurement voltage is proportional to the mean rate of flow and consequently also to the volume flow rate.
A flowmeter consists of a sensor that picks up the measuring signal generated from the induced voltage, and a transducer that converts this signal into a standardized output signal (4-20 mA or pulses). The measurement transducer can be affixed to the sensor or mounted separately. Pressure, temperature, density and viscosity do not affect the volume measurement. Solid fractions and gas bubbles should be avoided.
Specification
Hazardous areas
- • Measuring range: 0.05 ... 2717 m³/h
- • Accuracy: ±0,3 % of reading ±0,01% of Qmax
- • Pmax: PN40
- • Tmax: -35 ... +139°C
- • Connection: flange DN15 ... DN300, ANSI ½ ... 12"
- • Lining material: hard rubber, soft rubber, PTFE
- • Output: 4-20 mA, pulse, status
- • Communication: HART®
- • Approvals: ATEX (Gas/Staub)
Non- Hazardous areas
- • Measuring range: 0.05 ... 40376 m³/h
- • Connection: flange DN10 ... DN1200, ANSI ½ ... 48"
- • Lining material: hard rubber, soft rubber, PTFE / PFA
- • Pmax: PN40
- • Temperature range: -20 ... +150°C
- • Accuracy: ±0.3 % of reading ±0.01 % x Qmax
- • Output: pulse / analogue output, status display, totalizer, Hart®
- • Parameter loader software provided
- • Pipe Diameter: 13–6000 mm
Images
Vortex Flowmeters
The Vortex Flowmeter utilizes three primary sensing elements: a vortex shedding velocity sensor, a RTD temperature sensor and a solid-state pressure transducer to measure the mass flow rate of gases, liquids and steam. Systems that use external process measurements may not provide adequate compensation for the fact that process conditions can change radically between the point of velocity measurement and the point where upstream or downstream pressure and temperature measurements are being made.
Because this multivariable flowmeter measures all of these parameters in a single location, it delivers a more accurate process measurement. Integrating multivariable output capability with a single line penetration also simplifies system complexity and helps reduce initial equipment cost, installation cost and maintenance costs.
Specification
- • Measuring range:
- 0.2 - 5 ... 32 - 970 m³/h liquids
- 3 - 28 ... 549 - 9034 Nm³/h (20°C, 0 bar rel) air
- 3 - 18 ... 500 - 5797 kg/h (0 bar rel) vapour
- • Connection: ANSI ½ ... 8", flange DN15 ... DN200, wafer flange
- • Material: stainless steel, Hastelloy
- • Pmax: PN 16, 40, 100
- • Tmax: 260°C (400°C)
- • Accuracy:
- ±0.7 % of reading liquids
- ±1 % of reading gas/vapour
- 1 (3) analogue outputs, 1(3) contacts, digital display
- • Option: temperature / pressure sensor
Images
Coriolis Mass Flowmeters
The Mass Flow Meter utilizes the Coriolis principle of operation to measure mass flow. Density and temperature are simultaneously monitored and volumetric flow is additionally calculated with these parameters. This Series is available with a direct mounted transmitter or in a remote mounted configuration.
The unit can be used to meter nearly all liquid or gaseous media and was especially designed to operate in many standard applications. It is applied in many different industrial branches. This Series is also used for precise dosing as well as in loading and unloading applications.
Specification
- • Measuring range:
- 0 - 60 kg/h ... 0 - 2200 t/h water
- 0 - 600 kg/h ... 0 - 60000 kg/h
- • Connection:
- Flange DN10 - DN400, ANSI ½ ... 16" JIS, NPT, special according customers specification
- Flange DN10 ... DN80, ANSI ½ - 3"
- • Material: Stainless steel (1.4571 or 1.4404), Hastelloy® C-22
- • Pmax: PN40 (higher on request)
- • Temperature range: -40 ... +260°C
- • Accuracy:
- • ±0.1 (0.15) % of reading ±zero point-stability liquids
- • ±0.5 % of reading ±zero point-stability gases
- • ±0,005 g/cm³ with calibration density
- • ±0,002(1) g/cm³ with special calibration density
- • ±0,2% of reading ±zero-point-stability volume
- • Transmitter:
- • Analog / pulse output, digital display
- • Hart®, Profibus® PA, ATEX, FM, FMC, NEPSI
Images
Thermal Mass Flowmeters
The thermal mass flow meters measure the flow of gases, independent of variations in process pressure and temperature. The flow meters are available in different versions for pipe nominal sizes from ¼" to DN 200, pressures up to 16 bar and gas temperatures up to 175 °C.
Specification
- • Measuring range: 0 - 4.7 ... 0 - 94 m/s air
- • Connection:plug-in version up to DN1000 ¼ ... 8" NPT, DIN-flange DN25 ... DN200, 1 ... 8" ANSI
- • Material: stainless steel
- • Pmax: 16 bar
- • Tmax: 175°C
- • Accuracy: ±1 % of full scale + 0.5 % of reading
- • Output: analogue output, alarm, RS 232
Images
Variable Area Flowmeters:
The fluid flows from bottom to top through the meter tube of the flowmeter. The float is lifted until an annular gap between the meter ring and the cone-shaped float is produced which corresponds to the flow. The forces acting on the float are in equilibrium. The forces that are mainly acting on the float comprise buoyancy according to the principle of Archimedes, the flow force of the medium and the weight force. Each position of the float corresponds to a flow value measured during calibration, which is transferred to a scale.
Specification
- • Measuring / switching range:
- 0.5 - 5 ... 13 000 - 130 000 l/h water
- 0.015 - 0.15 ... 240 - 2400 Nm³/h air
- • Connection: flange DN15 ... DN150, ANSI ¾ ... 6"
- • Material: stainless steel 1.4404, PTFE-lining, Hastelloy®
- • Pmax: PN40 (16) bar
- • Tmax: 350°C
- • Accuracy: ±1.6 % of full scale (Gases: ±2 % of full scale)
- • Options: contacts, analogue output, totaliser, Hart®, Profibus® PA, ATEX
- • Protection:
- • IP65 (aluminum housing)
- • IP67 (stainless steel housing)
- • Explosion protection: BVS 03 ATEX H/B 112
Images
Differential Pressure Type Flowmeters
We are offering Differential Pressure Type sensors for flow measurement like Pitot tube Anubar, Orifice Plate.
Images

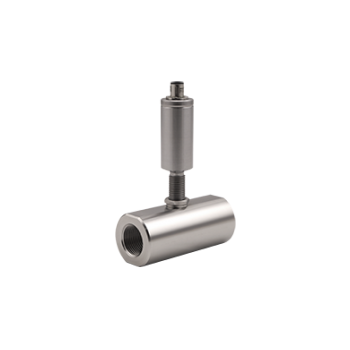

Turbine Wheel Flowmeters
The flowmeters with turbine wheel serve to measure, control and regulate flowing liquids. The use of chemically highly resistant materials allows the devices to be used with acids, bases and aggressive media that are to be found in the chemical industry.
Images
Flow switches
We are offering different type of flow switches like as All Metal Flow switches, Displacer Flow switches, Paddle switches, Baffle plate Flow switches etc.
Images

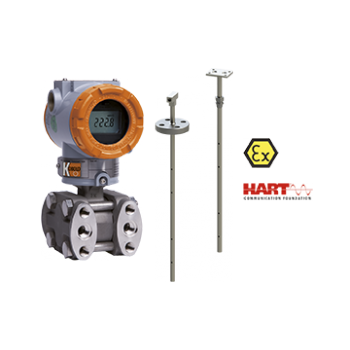

Pressure Transmitter
Specification
| Type | Differential pressure (flow) | Pressure | Absolute pressure | Level | Remote seal type pressure | Remote seal type differential pressure (flow) | Pressure | Absolute pressure |
| Maximum span (kPa) [URL] | 1 6 32 130 500 3000 20000 |
130 500 3000 10000 50000 |
16 130 500 3000 |
32 130 500 |
130 500 3000 10000 50000 |
32 130 500 |
130 500 3000 10000 |
130 500 3000 |
| Accuracy rating | ±0.04% (option)/±0.065% (standard) *Refer to the data sheets for details. | ±0.1% | ±0.2% | |||||
| Diaphragm materials | 316L SS Hastelloy-C Monel Tantalum 316L SS Gold-plated Gold & ceramic coating |
316L SS Hastelloy-C Monel Tantalum | 316L SS Hastelloy-C Monel Titanium Zirconium 316L SS Gold-plated |
316L SS | ||||
| Process connection | Rc1/4 | Flange | NPT1/2, Rc1/4, Rc1/2, NPT1/4 | |||||
| Common specifications | Elevation / Suppression: -100 to +100%URL Span setting range: 1 to 1/100URL Setting interval: 60ms Temperature range:- Sensor unit: -40 to +120°C (version for higher temperature available) Electronics: -40 to 85°C Power supply voltage: 10.5–45V DC Output signal / Allowable load resistance: 4–20mA DC/600Ω or less (When 24V DC is applied) |
Communication protocol: HART protocol Damping time constant: configurable between 0–32 s Zero/span adjustment: by adjustment screws, by optional field configurator Electric cable inlet: G1/2, 1/2-14 NPT, pg13.5 or M20×1.5 Options: Analog indicator, digital indicator, cleaning for oxygen service, cleaning for chlorine service,stainless housing, stainless tag plate, field configurator |
||||||
Images

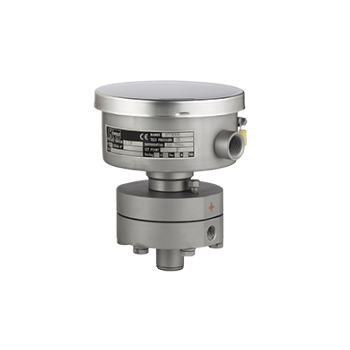

Pressure Switches
We offer pressure switches for aggressive media pressure switch, general use pressure switch, vacuum switch, differential pressure switch, steam pressure switch.
Images
Pressure Gauges
We offer Bourdon tube pressure gauges, Bourdon tube pressure gauges for exceptional safety, Diaphragm Pressure gauges for general use and aggressive media, Digital pressure gauges, Differential digital pressure gauges, hand held pressure measuring instruments.
Images

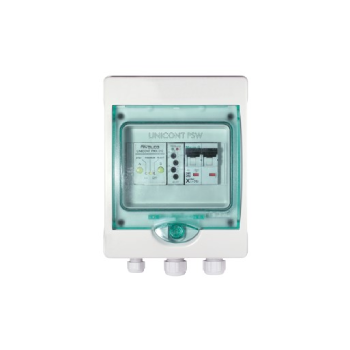

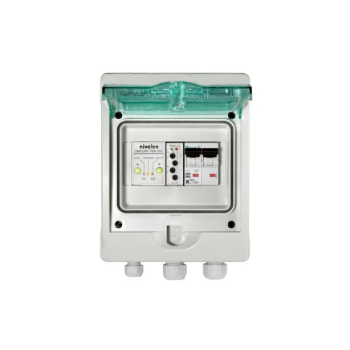

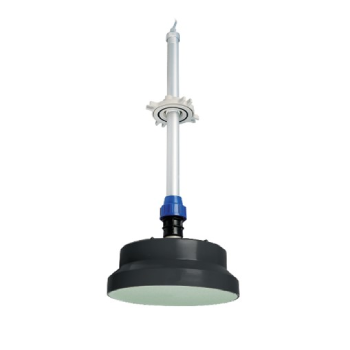

Ultrasonic Pump Control System:
Specification
- • Low cost automatic pump control system
- • Ultrasonic level measurement
- • 0.4 – 3 m measurement range
- • Programmable pump cycling
- • Optional dry-run or overfill protection
- • Maintenance-free
- • Max. 1 kW switching rate
- • Motor or cable protection
- • IP68 sensor
- • Incorporated circuit breaker
- • Power supply: 230 V AC
- • Ambient temperature: (Control unit) - 25 °C … + 45 °C
- • Process temperature: (Ultrasonic transmitter) - 25 °C … + 60 °C
- • Output: 1 relay NC contact, 250 V AC, 8A, AC 1
- • Process connection: Control unit: wall mountable; Ultrasonic transmitter: 1"
- • Protection: Control unit: IP65; Ultrasonic transmitter: IP68
Application
- • Domestic sewage shafts, wet wells
- • Controlling of one-phase pumps (max. 1 kW)
- • Sumps, tanks, flood storages
- • Drainage sumps, pools
Images
Controllers
We offer a wide variety of temperature controllers from simple control to advanced control to meet your needs.
Specification
- • Type of controller: Color LCD, Compact, Simple, High-End, Thermostat, Module
- • Accuracy : ± 0.2 – ± 0.5 % FS
- • Input: Universal input like RTD,TC, Voltage/Current/Thermistor, Remote setpoint, current transformer, Valve position
- • Output: Relay contact, SSR/SSC, Current/Voltage
- • Variety of control function like On-off, PID, Fuzzy, Motor operated control valve
Images
Recorders
Industrial recorders are widely used to record process values such as temperature, pressure, flow rate, level, and concentration in various industrial plants. We provides 100-mm and 180-mm width color inkjet recorders, and paperless recorders which stores data in memory card.
Images

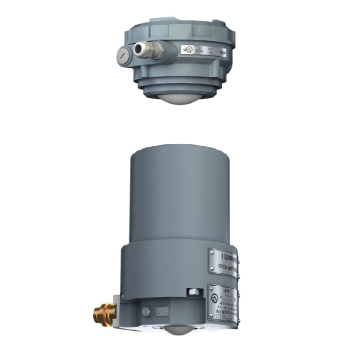

Gas Analyzers
We offer various types of gas analyzers to support environmental preservation and control efforts. These efforts include measurements of atmospheric pollution and detection of low density of SOx and NOx, generated by incinerating facilities and boilers. Gas analyzers are widely used to monitor the atmosphere to help maintain a cleaner natural environment.
Specification
- • Flue Gas Analyzer System: NOx, SO2, CO, CO2, and O2.
- - Principle of measurement: Double-beam NDIR sensor + O2 sensor and Single-beam NDIR sensor with sample switching system + O2 sensor
- • Flue Gas Analyzer System: Continuous monitoring of 7 components, NOx, SO2, CO, CO2, O2, HCl, and dust
- - Principle of measurement: Non-dispersive infrared sensor(double beam) Zirconia sensor for O2 measurement
-
• Cross Stack Laser Gas Analyzer: Continuous monitoring of HCl, NH3, CO, CO2, CH4, and O2
- - Principle of measurement: Non-dispersion infrared (NDIR)
- • Aerosol Analyzer : Real-time and quantitative analysis of particle size, number of particles, composition (sulfate, nitrate, black carbon) of aerosol (PM2.5) in the air
Images
Energy Monitoring - Compressed Air and Industrial gases
Product range:
- 1. Flow Meters :- Unique four-in-one (flow, pressure, temperature and totalized flow)
- - Compressed air flow meters
- - Nitrogen flow meters
- - CO2 flow meters
- - Oxygen flow meters
- - Argon flow meters
- - Helium flow meters
- - Corgon flow meters
- 2. Dew Point Sensors
- 3. Power Meters
- 4. Energy Monitoring Softwares
Area of Application:
- Energy Management (ISO 50001)
- Maintenance Management
- Efficiency Optimization
- Benchmark multiple machines/sites
- Troubleshoot & diagnose problems/ bottlenecks
Market Segments:
- Cement, Steel, Power Plant and Non-Ferrous Metals
- Automotive Industry
- Pulp & Paper and Glass Industry
- Pharma Industry
- Food and Beverage
Images
.jpg)
.jpg)
.jpg)

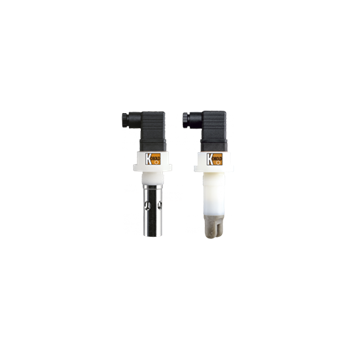

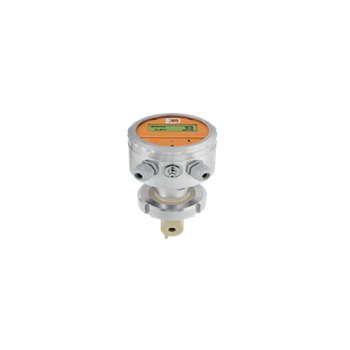

Conductivity, PH, ORP,Humidity and Turbidity Measurement
Specification
- • Conductive Conductivity Measuring Cells:
- Measuring rages:
- 0.05 ... 10 µS/cm (K = 0.01 1/cm)
- 1 ... 1000 µS/cm (K = 0.1 1/cm)
- 10 µS/cm ... 15 mS/cm (K = 1.0 1/cm)
- • Inductive Conductivity / Concentration and Temperature Transmitter:
- Measuring range: 0 - 500 µS/cm ... 0 - 2000 mS/cm
- • Gel-filled pH-combined Electrode/ Gel-filled ORP Combined Electrode:
- Measuring range: pH 0 ... 12 / pH 0 ... 14
- • Humidity Measuring Instrument with Analoque Output:
- Operating range: 0 ... 100% rH
- • Turbidity Measurement System:
- Measuring range: 0 ... 500 ppm
Images
